Stable 30-35% RH for Seed Storage
How Magnus Kahl Seeds integrated Humiscope dehumidification into a moveable cool room to maintain stable temperature and humidity conditions for seed storage.
PROJECT AT A GLANCE
Client: Magnus Kahl Seeds
Application: Controlled seed storage
Location: Melbourne, Victoria
Challenge: Maintaining stable low temperature and humidity conditions for high value seed
Solution: Humiscope dehumidifier integrated into a moveable cool room
Operating temperature: 3-5°C
Operating humidity: 30-35% RH
Stored product: Approximately 2,520 kg of seed
Storage format: 10 kg metal pails with spacing maintained for airflow
Outcome: Stable temperature and humidity conditions aligned with the client's target parameters
THE CLIENT
Introducing Magnus Kahl Seeds
Magnus Kahl Seeds required a dedicated controlled environment for the onsite storage of seed.
The storage room needed to maintain consistently low temperature and humidity conditions while also providing flexibility for future site requirements. A moveable cool room was ultimately selected as the preferred approach.
Humidity control was a critical part of the design, helping provide a stable storage environment regardless of changing ambient conditions outside the room.
THE CHALLENGE
Magnus Kahl Seeds needed to maintain stable temperature and humidity conditions for seed stored within a refrigerated environment.
Initial discussions explored several options, including a complete containerised storage room. As the project developed, Magnus Kahl Seeds elected to source the cool room separately and integrate a Humiscope dehumidifier into the completed room.
The solution needed to provide reliable humidity control alongside refrigeration while allowing sufficient space for the stored product and effective air circulation throughout the room.
The room would ultimately store more than two tonnes of seed, making consistent environmental conditions an important part of maintaining suitable storage conditions for the product.

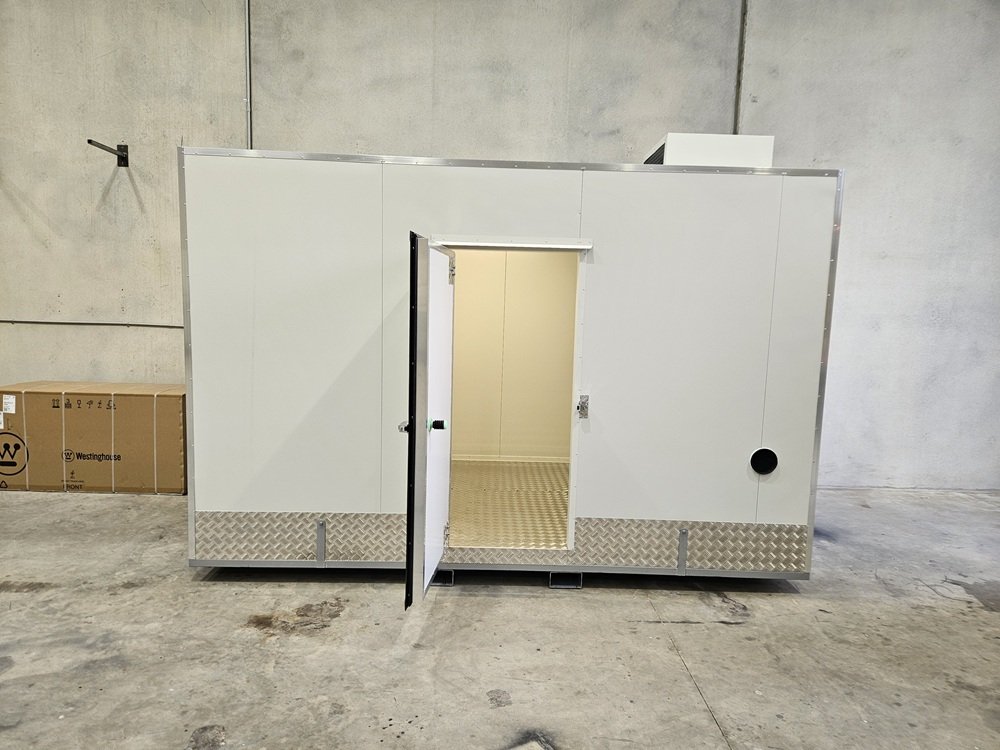

Moveable cool room developed for controlled onsite seed storage at Magnus Kahl Seeds.
THE SOLUTION
Humiscope worked with Magnus Kahl Seeds during the planning process to determine the humidity control requirements and identify a dehumidifier suitable for the proposed storage environment.
While a complete Humiscope supplied room was initially considered, Magnus Kahl Seeds ultimately arranged the cool room locally. Humiscope's role was to size and supply the dehumidifier required to maintain the specified humidity conditions within the room.
The dehumidifier operates alongside the cool room refrigeration system, allowing temperature and humidity to be controlled independently and providing a more stable environment for the stored seed.
The finished room incorporates dedicated refrigeration and dehumidification equipment, with product positioning designed to maintain suitable airflow throughout the storage area.

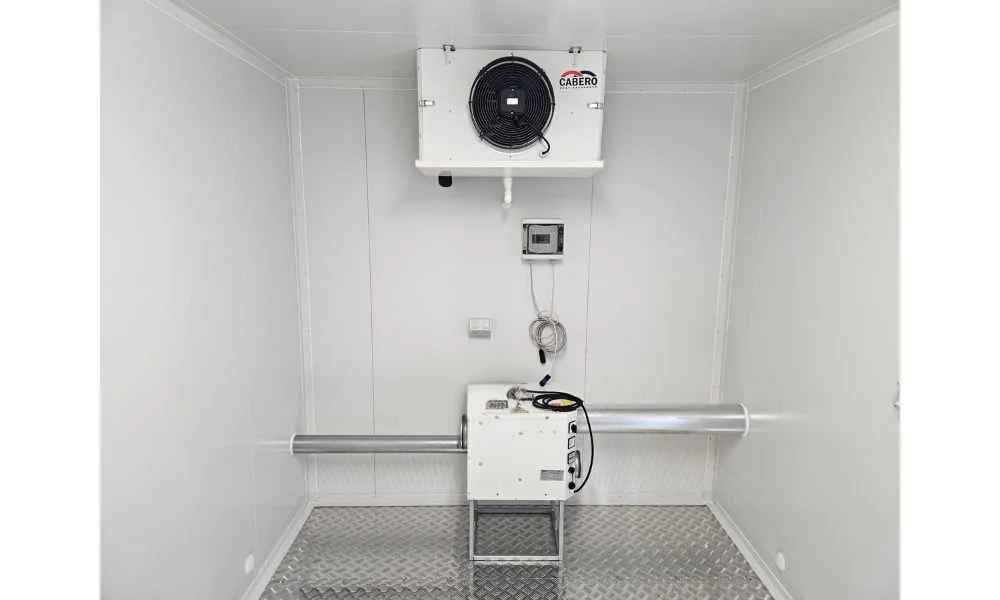

Dedicated refrigeration and dehumidification equipment installed before the controlled seed storage room was loaded.
THE OUTCOME
““The cool room and dehumidifier have performed excellently over the last month. We maintain 3-5 degrees Celsius and a relative humidity of 30-35%, which aligns with our targeted parameters.”
”
After approximately one month of operation, Magnus Kahl Seeds reported that both the cool room and dehumidifier were performing very well and maintaining their targeted 3-5°C and 30-35% RH.
The room currently stores approximately 2,520 kg of seed across two product lines.
Seed is stored in 10 kg metal pails, with spacing maintained between the pails to allow adequate airflow around the product.
RESULT AT A GLANCE
3-5°C operating temperature
30-35% RH maintained
Approximately 2,520 kg of seed in storage

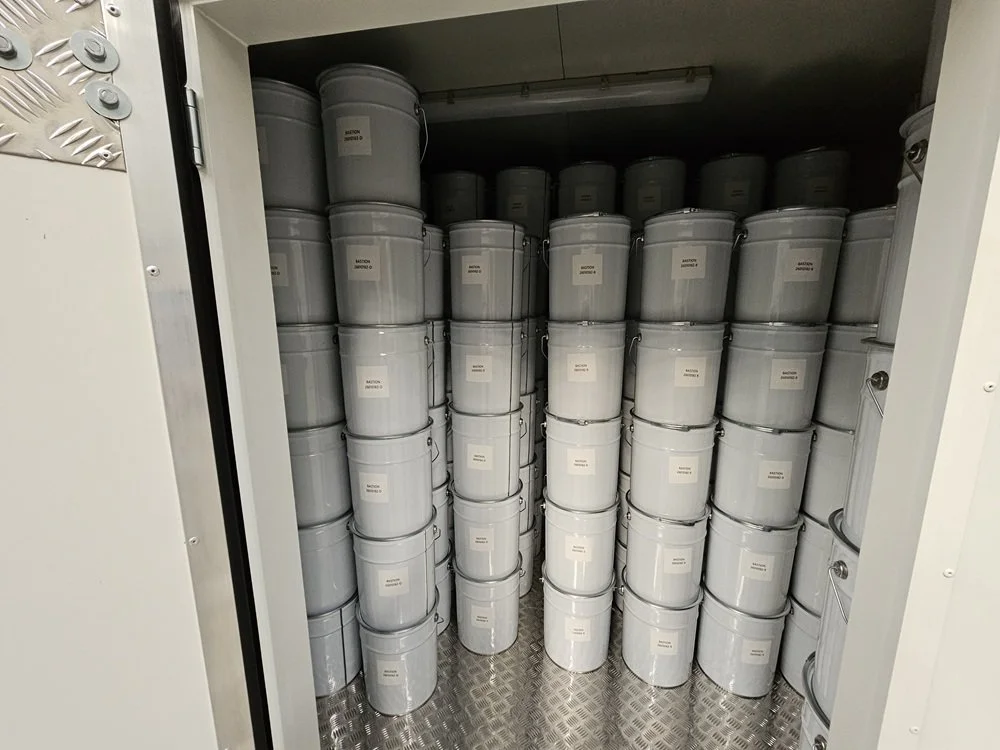

Approximately 2,520 kg of seed is currently stored within the controlled room, with pails positioned to maintain adequate airflow.
FUTURE EXPANSION PLANNED
Magnus Kahl Seeds has since advised Humiscope that it expects to purchase one or potentially two additional dehumidifiers in the coming year as its controlled storage requirements expand.
““We purchased one of your dehumidifying units last year and installed it into a moveable cool room for our onsite seed storage. It works really well.””
Need stable temperature and humidity conditions for seed storage?
Humiscope can assess your storage environment and design a humidity control solution around your required temperature, relative humidity, product load and operating conditions.
