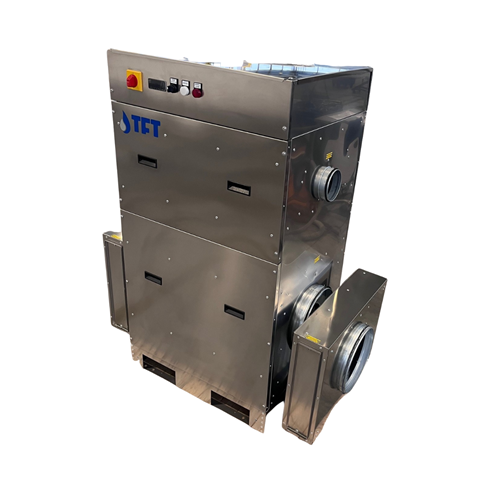

Air Dry Indoor (ADI) 1,500 – 4,500 m³/hr Series Desiccant Dehumidifier
The Air Dry Indoor (ADI) Series is purpose-built for installation inside low-temperature rooms (down to –25 °C) to prevent ice, stabilise humidity and protect product quality. Using a high-efficiency silica-gel desiccant wheel with electric regeneration, ADI units deliver reliable drying performance for cold rooms, processing areas and storage cells.
Key Features
Indoor, cold-room rated dehumidifiers engineered for –25 °C to 0 °C environments.
Silica-gel desiccant rotor with belt drive and ball-bearing support for long life; non-flammable, tolerant of saturation.
IP54-rated construction with aluzinc/stainless panels; service access from the top/front.
Dual air streams (process & regeneration) with dedicated fans; electric regeneration coil with step or PWM control.
G4 filtration on process and regeneration inlets.
Simple controls: OFF / AUTO (humidistat/probe) / 100% manual; service indicator and alarm log via HMI.
Modbus (RS485) ready and terminals for remote on/off, probes, dampers and alarms
Technical Specifications (ADI Models)
Airflow & capacity (process air):
ADI 1500E: 1,500 m³/hr | 29.8 kg/24 h dehumidification*
ADI 3000E: 3,000 m³/hr | 60.5 kg/24 h dehumidification*
ADI 4500E: 4,500 m³/hr | 92.2 kg/24 h dehumidification*
Regeneration (electric): 6.6 kW (1500E) · 10.2 kW (3000E) · 15.3 kW (4500E); approx. +90 °C temperature rise.
Fans (nominal): Process fan power 0.72 / 1.25 / 2.40 kW; Regeneration airflow 200 / 320 / 500 m³/hr.
Electrical: 400 V / 3-phase / 50 Hz; Max input 7.95 / 12.08 / 18.22 kW; Max current 12.75 / 18.65 / 27.85 A.
Capacities stated at process air –18 °C, 100% RH and regeneration air 20 °C, 60% RH (nominal test conditions).*
Typical Applications
Ice-free cold rooms / negative-temperature cells (anti-frost at doors/airlocks)
Food processing & packaging at low temperatures
Storage & logistics where condensation and corrosion must be prevented
General process drying in cold environments
(Install with short, insulated regeneration/wet-air ducts and correct slopes/drainage to avoid icing.)
Humiscope specifies, sources and commissions ADI indoor systems for ultra-cold environments. We also integrate additional HVAC where required for full-room control. Get your free, no-obligation quote today.
See How Our Systems Perform in Real Environments
Case Study on A Commercial Cold Room Converted into a Drying Room For Dry Ageing Meat. See The Dramatic Improvements In Yield and Quality After Converting The Room Into a Properly Designed Drying Room
