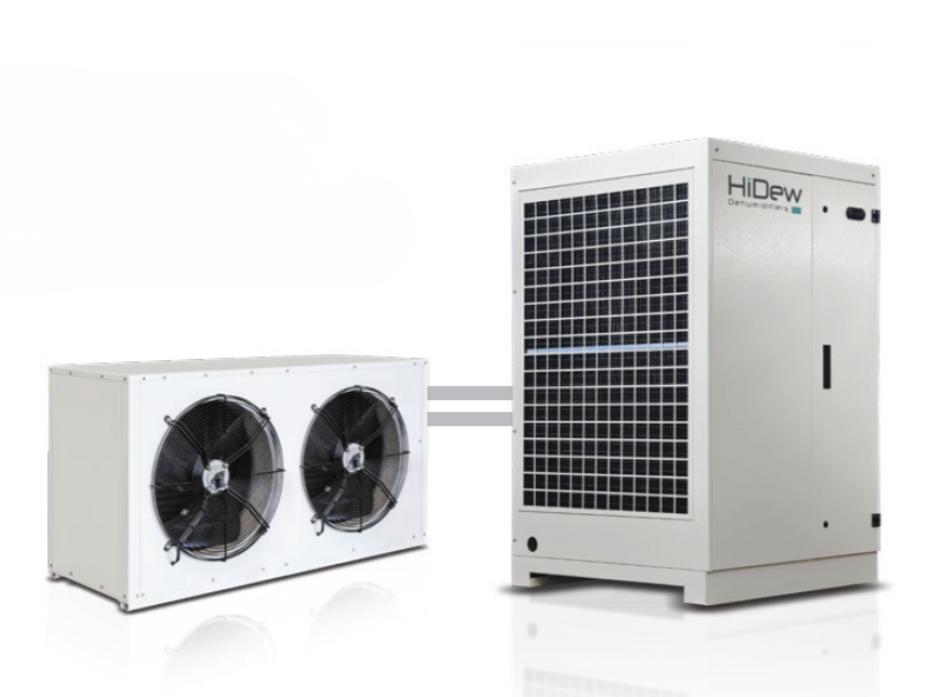

ID 900–35,000 m³/hr Series Industrial Refrigerant Dehumidifier
Featuring a remote air condenser for external heat dissipation, the IT series combines precise dehumidification with integrated cooling performance - ideal for facilities that experience seasonal or process-related heat gain. This system delivers high-capacity humidity and temperature control for industrial, commercial, and process environments.
Built for continuous operation, the IT system ensures consistent humidity control, energy efficiency, and air quality in applications ranging from production halls and greenhouses to food processing plants and drying chambers.
Typical Applications
Industrial and commercial facilities
Food and beverage processing
Greenhouses and agricultural operations
Pharmaceutical and laboratory environments
Drying cabins and paint booths
Warehouses and logistics centres
Museums, archives, and controlled storage areas
Key Features
Integrated Cooling Capability: The remote air condenser releases excess heat outdoors, maintaining stable indoor temperatures during summer.
Industrial-Grade Dehumidification: Handles demanding environments with capacities up to 4650 L/day and airflow up to 35,000 m³/hr.
Robust Construction: Galvanised steel housing, copper-aluminium finned coils, and stainless-steel condensate tray ensure long service life.
Advanced Climate Control: Optional hot water or oversized coil for heating, cooling, or combined operation.
Desuperheater Option: Recovers refrigerant heat for free hot water production (AISI 316L stainless steel version available).
Energy-Efficient Airflow: Double-inlet centrifugal or EC radial fans deliver high performance with minimal energy use.
Smart Control Interface: Includes onboard humidity and temperature monitoring, Modbus RS485 connectivity, and scheduling options.
Technical Specifications
Model Range: IT 0100 – 4500 Series
Airflow: 900 – 35,000 m³/hr
Dehumidification Capacity: 100 – 4650 L/day*
Cooling Capacity: 4.9 – 226 kW (remote condenser models).
Heating Options: Hot water coil, oversized coil, electric heater, or desuperheater.
Fan Type: Centrifugal or EC radial fan (variable speed)
Available Static Pressure: Up to 480 Pa
Power Supply: 230 V / 1-phase / 50 Hz or 400 V / 3-phase / 50 Hz
Sound Level: 56 – 74 dB(A)
Construction: Painted steel casing, copper-aluminium coils, stainless-steel tray
*Performance based on inlet air at 30 °C / 80 % RH..
Humiscope designs and supplies industrial dehumidification systems that integrate humidity, cooling, and heat recovery control. Our IT Series provides efficient, year-round climate management for large-scale industrial environments across Australia.
